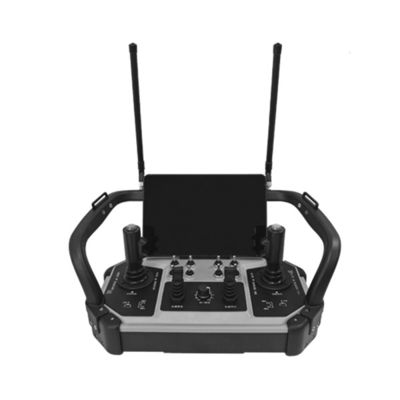

Professional Remote Controller for Mobile Construction Machinery

Professional Remote Controller for Mobile Construction Machinery

VA-RC-CL01-2 is a A professional remote control operating system designed for mobile construction machinery. The system fully considers the outdoor mobile vehicles. Harsh working environment, one-to-one ad hoc IP network based on IP system, using 1.4GHz frequency band A wireless image transmission remote control system is developed for an ad hoc network radio station. The system has the characteristics of self-organization, self-recovery, high survivability, Ability to support multi-hop transmission of multimedia services such as data and video. The wireless transmission distance is more than 800 meters and can At the same time, 6 channels of video and control signals are transmitted. The image signal is connected with the vehicle-mounted terminal equipment through the LAN to transmit the image signal of the vehicle To the remote control. The control signal is connected with the VCU controller of the vehicle through the CAN network, And the operation of the remote control operation end is transmitted in two directions.

       Product Features

• Communication distance ≥ 800m in case of barrier-free intervisibility.
• Up to 6-channel 1080p HD video transmission (image end-to-end delay ≤ 200ms)
• Control signal supports CAN (delay ≤ 50ms)
• The communication process is encrypted and transmitted.
• 10.1-inch 1920 * 1080, display brightness 1000 CD/m2
• Wide worktop size: 390mm * 205mm
• The overall IP65 or above protection
• capability of the operation end Data communication adopts CAN bus network.
• Can be directly connected with the vehicle network Image communication adopts LAN network directly
