Drive and control integrated motor for demanding industrial applications
| product model | input voltage |
Peak output current / torque speed peak power (S2=2min) |
Rated output current / Torque Speed Rated power (S2=15min) |
re |
| VA-DR-E184P14-80 | 80V | 279A/116N.m1800r/min22KW |
184A/76N.m1800r/min14KW |
|
| ambient condition | |||
project |
ask |
||
| Storage temperature | -40℃~95℃ | ||
| working temperature | -30℃~55℃ | ||
| Hot and humid conditions | 40±2℃,90%～95% | ||
levels of protection |
IP67 | ||
above sea level |
Less than 1000 meters, more than 1000 meters decreased, and 1% decreased for each 100 meters increased | ||
| salt atmosphere | The test period shall not be less than 96 hours, and the controller shall work normally after the test. | ||
| technical specifications | |||
| Table 10: Technical indicators | |||
| power input | rated voltage | DC 80V | |
| Minimum input voltage | DC 56V | ||
| maximum input voltage | DC 96V | ||
| starting voltage | DC 48V | ||
| power output | rated current (A) | See 2.1.1, Table 3 | |
| output frequency | 0.00~300.0Hz |
||
| control characteristic | control method | Closed-loop vector, IF mode, and VF mode | |
| PWM frequency | 2 KHz ~ 8 KHz (Setable) | ||
| Logic-end input current | <10mA |
||
| overtemperature protection | 75℃ forewarning, 95℃ overtemperature protection | ||
| Radiator insulation strength | 500Vac | ||
| levels of protection | IP67 | ||
| cooling-down method | natural cooling | ||
| Upper-position computer detection function | Waveform state detection, I0 port state detection, parameters online upload and download function | ||
| CANopen Communication | High-speed CAN communication, which can stably and timely monitor the working state of the drive | ||
| defencive function | Overvoltage protection; overcurrent protection; overtemperature protection; short circuit protection; overload protection; contactor suction failure; contactor opening failure; current detection abnormal protection; KSI start abnormal protection; encoder failure; CAN communication failure. |
||
| environment | Where to use | No condensation, ice, rain, snow, hail, etc., solar radiation less than 700 W/m2, pressure 70 ~ 106 kPa. | |
| above sea level | Less than 1000 meters, more than 1000 meters decreased, and 1% decreased for each 100 meters increased | ||
| ambient temperature | -30℃ ~ + 55℃ (ambient temperature 40℃ ~55℃, please drop) | ||
| humidity | 5% ~ 95% RH, anhydrous bead condensation | ||
| Storage temperature | -40℃~+90℃ | ||

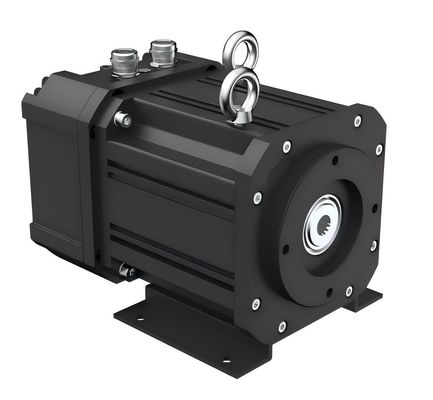

The 80V all-in-one machine integrates the motor and controller, while meeting the high protection of IP67, making the space compact. At the same time, it saves the wiring of motors and drives on-site for customers, reducing costs.
|
|
