Battery Pack

MOQ:	20PCS
Standard Packaging:	Carton Box
Delivery Period:	30 work days
Payment Method:	L/C
Supply Capacity:	2000PCS/Per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

ELT512200F/ELT512300F/ELT512500F

Battery Material:

Reliable LiFePO4

Application:

Forklift

Charging Voltage:

29.2V-58.4V

Net Weight:

45KG-200KG

Energy:

5120Wh 15360Wh 25600Wh

Product Description

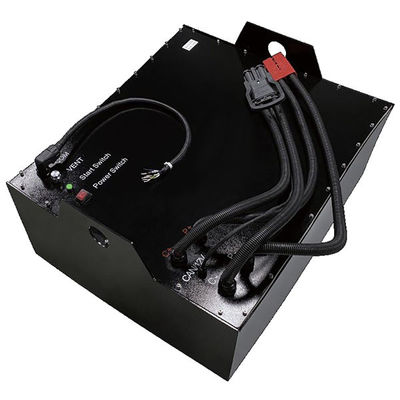

Forklift Battery Pack

Features

1. Adopt green, safe and reliable LiFePO4 battery cells.

2. Built-in intelligent BMS to protect the battery from

over charge, over discharge, over current, over

temperature, short circuit etc..

3. Faster charge, max. 200A constant charge current.

4. Easy installation with less space occupied.

5. Perform 6000+cycles, design life for 10 years.

Item General Parameter
Battery Model ELT512200F	ELT512300F	ELT512500F
Energy 5120Wh	15360Wh	25600Wh
Rated Capacity 200Ah	300Ah	500Ah
Nominal Voltage 25.6V	51.2V	51.2V
Cut-Off Voltage 20V	40V	40V
Charging Voltage 29.2V	58.4V	58.4V
Max.Continuous 100A Charge Current	200A	300A
Max.Continuous 175A Discharge Current	400A	300A
Pulse Discharge Current 400A	500A	400A
Communicatio CAN
Operation Temperature Charge:O~55℃
Discharge: -20~65℃
Storage Temperature 0~45℃
LCD Display Optional
Dimension(LWH) 57015045mm	940340485mm	970700300 mm
Net Weight 45kg	130kg	200kg

Low Voltage Motor
