| MOQ: | 20PCS |
| Price: | RMB 500-600 PCS |
| Standard Packaging: | Carton Box |
| Delivery Period: | 30 work days |
| Payment Method: | L/C |
| Supply Capacity: | 2000PCS/Per Month |

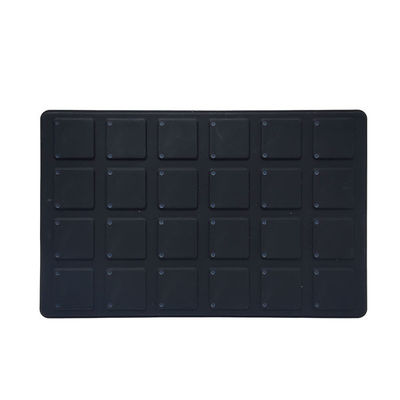

24-key silicone CAN bus communication panel with IP67 rating and customizable options
| Key icon information | Can be more customized on demand |
| Working voltage | 9-36V |
| Working temperature | -40℃～+85℃ |
| Power consumption | <5W |
| Communication method | 1 channel CAN2.0B (supporting standard and extended frames), compatible with CAN-Open and J1939 |
| Test Times | >1000K |
| Indicator lights | Each button has 3 indicator lights, red, yellow, and green |
| Backlight color | White |
| silicone panel | silicone panel, engineering plastic back cover. |
| IP Rating | IP67 |
| Random vibration | IEC60068-2-64 |
| Humidity cycle | EN60068-2-30: 2006 |
| Surge impact |
ISO7037-2: 2004 EN61000-4-5 ±2k
|
Typical application areas include:
★ Construction machinery, such as excavators, cranes, and rotary drilling rigs, etc.
★ Sanitation machinery, such as sweeper trucks, garbage compression trucks, food waste trucks, and other related sanitation special vehicles
★ Logistics and transportation equipment
★ Aerospace electronic equipment
★ Healthcare equipment
Customization can include:
★ Button patterns, laser-engraved patterns can be customized according to specific functions
★ Panel start-up methods
★ CAN bus parameters, such as data frame formats for receiving and sending frames, baud rate, and ID numbers for bus data, etc.
|
|
