| MOQ: | 20PCS |
| Price: | RMB 600 PCS |
| Standard Packaging: | Carton Box |
| Delivery Period: | 30 work days |
| Payment Method: | L/C |
| Supply Capacity: | 2000PCS/Per Month |

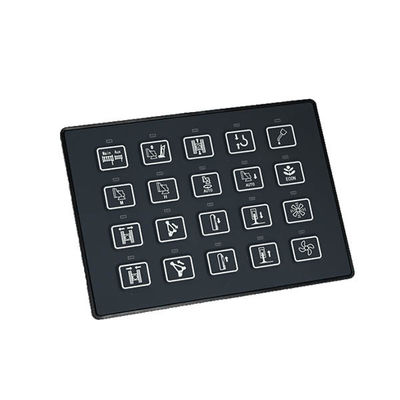

20-key silicone CAN bus communication panel with IP67 rating and customizable options
The VA-CB-XW20-SW rotary drilling operation panel is a specialized operation panel designed for excavation machinery, aiming to achieve efficient motion control, intelligent fault diagnosis, and personalized function customization, thereby enhancing the performance and safety level of construction machinery. The operation panel fully considers the harsh working environment of outdoor mobile vehicles, has excellent adaptability to wide temperature, high humidity, and large vibrations, and the whole machine environmental test standard is based on GB/T 2423 (IEC 60068); electromagnetic compatibility is based on ISO 13766; it has a high protection level (IP 65); and it is mainly used in the field of excavation machinery.
| Key icon information | Can be more customized on demand |
| Working voltage | 9-36V |
| Working temperature | -40℃～+85℃ |
| Power consumption | <5W |
| Communication method | 1 channel CAN2.0B (supporting standard and extended frames), compatible with CAN-Open and J1939 |
| Test Times | >1000K |
| Key indicator light | Each key has one green indicator light. |
| Backlight color | White |
| Key force |
300gf |
| IP Rating | IP67 |
| Random vibration | IEC60068-2-64 |
| Humidity cycle | EN60068-2-30: 2006 |
| Surge impact |
ISO7037-2: 2004 EN61000-4-5 ±2k
|
|
|
