| MOQ: | 20PCS |
| Price: | RMB 400-500 PCS |
| Standard Packaging: | Carton Box |
| Delivery Period: | 30 work days |
| Payment Method: | L/C |
| Supply Capacity: | 2000 PSC 30 work days |

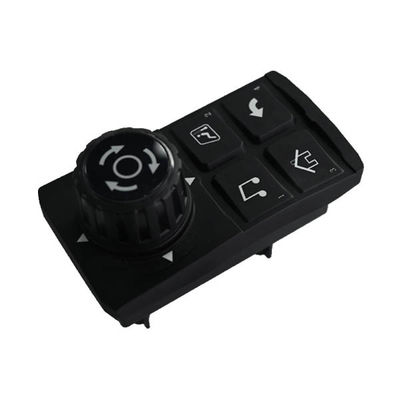

Excavator Screen Navigation Button Canbus Keypad
| working voltage | 9～36VDC |
| working temperature | -40℃~+85℃ |
| Storage temperature | -40℃~+85℃ |
| power dissipation | <2W @24VDC |
| communication mode | 1-way CAN2.0B |
| Number of keys | Four |
| Keys life | Single-key lifetime is> 1 million times |
| Navigation direction | 4 to (upper, lower, left, right) + center press |
| Navigation action Angle | 9°max |
| Navigation action life | 4> 50 million times and center presses> 1 million times |
| Number of knob positioning | 30 |
| Knob rotation life | Photoelectric life> 5 million, mechanical feel> 1 million |
| pilot lamp | 1 to 3 indicators for each button |
| Background light color | white |
| Case material | Imported silicone panel, engineered nylon back shell |
| levels of protection | IP65 |
| random vibration | IEC60068-2-64 |
| Hot and humid cycle | EN60068-2-30:2006 |
| Wave surge impact | IS07037-2:2004EN61000-4-5±2kv |
| communication interface | CAN2.0B (Default Port rate of 250 kbps) |
|
|
