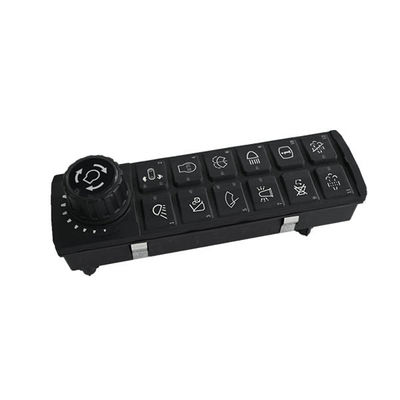

Excavator throttle knob operation CAN bus Keypad
  • name
  • name

Excavator throttle knob operation CAN bus Keypad

MOQ: 20PCS
Price: RMB 500-600 PCS
Standard Packaging: Carton Box
Delivery Period: 30 work days
Payment Method: L/C
Supply Capacity: 500PCS/Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GDJD
Certification
CE
Model Number
VA-KB-C012-3
Operating Temperature:
-40°C To 85°C
Number Of Keys:
12
Interface:
CANbus
Ip Rating:
IP67
Keys Life:
1000K
Number Of Encoder Localizations:
10s (photoelectric Codes)
Product Description

Excavator throttle knob operation CAN bus Keypad



working voltage 9～36VDC
working temperature -40℃~+85℃
Storage temperature -40℃~+85℃
power dissipation <2W @24VDC
communication mode 1-way CAN2.0B
Number of keys 12
Number of encoder localizations 10s (photoelectric codes)
Keys life Single-key lifetime is> 1 million times
pilot lamp 0-3 indicators for each key (customized according to customer needs)
Key to press the backlight color white
Case material Imported silicone, engineered nylon
levels of protection IP65
random vibration IEC60068-2-64
Hot and humid cycle EN60068-2-30:2006
Wave surge impact IS07037-2:2004EN61000-4-5±2kv

communication interface CAN2.0B (Default Port rate of 250 kbps)
