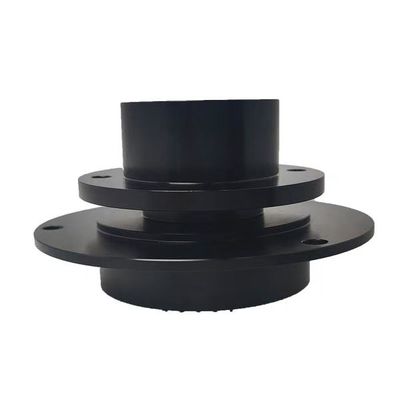

Boom Joint Transducer Measures Mechanic Angles.

MOQ:	20PCS
Price:	RMB 5000/PCS
Standard Packaging:	Carton Box
Delivery Period:	30 work days
Payment Method:	L/C
Supply Capacity:	300PCS/Per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

Model Number

VA-S-360-61B

Material:

Aluminium

Application:

Measure The Angle Of The Arm Support

Measurement Range:

± 180 Degrees

Accuracy Better Then:

± 0.1 Degrees

Storage Temperature:

-40 … +85 Degrees Celsius

Protection PCB:

IP 67

Product Description

Boom Joint Transducer Measures Mechanic Angles.

Technical Data

Electrical data

Supply Voltage 10-30V DC

Power supply max 100 mA

Measurement Range ± 180 Degrees

Accuracy Better then ± 0.1 Degrees

Bus Connection Full compatible with the ISO 11896

Communication profile DS 301 DSP-406 for absolute linear encoder

**Node ID Adjustable 1–127 with DIP Switch.

**Baud Rate Adjustable with DIP Switch. 7 different baud rate setups (10 kb/s, 20

kb/s, 50 kb/s, 125 kb/s, 250 kb/s, 500 kb/s, 1000kb/s).

Mechanical Data

Housing Aluminium housing, anodized

Vibration resistance Broadband Noise,

20 G RMS all axis in frequency range: 20 - 2000 Hz

Connection Terminal block for operating voltage and CAN bus.

4 Pins

**DIP Switch For adjustable Node ID and Baud Rate.

10 positions.

Operating temperature -30 … +50 Degrees Celsius

Storage temperature -40 … +85 Degrees Celsius

Protection PCB IP 67
