Drill Pipe Depth Sensor

MOQ:	20PCS
Price:	RMB 5000/PCS
Standard Packaging:	Carton Box
Delivery Period:	30 work days
Payment Method:	L/C
Supply Capacity:	300PCS/Per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

Model Number

VA-L050-CAN

Bus Connection:

Full Compatible With The ISO 11896

Type:

Active High

Number Of Measured Turns:

50 Turns

Storage Temperature:

-40 … +85 Degrees Celsius

Protection PCB:

IP 67

Product Description

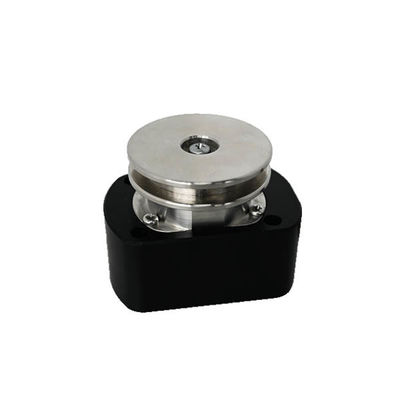

Drill pipe depth sensor

Encoder (length) transducer measures movement. The transducer has a measurement wheel

(diameter 40mm).

The transducer has connector with 2 digital inputs and power supply.

• Parameter setting of the sensor resolution and zero point is possible.

• 1 server SDO, 3 Transmit PDOs conforming to CiA DS 406,

(static PDO mapping).

• The COB IDs of the PDOs as well as the type of transmission (synch/asynch) and inhabit

time of the individual PDOs can be configured.

• The Length Transducer supports "Heartbeat" protocol.

• The Length Transducer generates an emergency object. The COB ID of the

EMCY object can be configured.

• The Length Transducer stores the last 5 errors occurred. The error code of the respective

emergency object is stored.

• The Length Transducer support LSS layer for change of baudrate and node number

• Object 1010 and 1011 for store and restore of all changeable parameter is supported

For more information pleas refer to CiA DS 301, DS302, DSP 406 for absolute linear encoder, and

DSP305 LSS layer
